2024-November-22

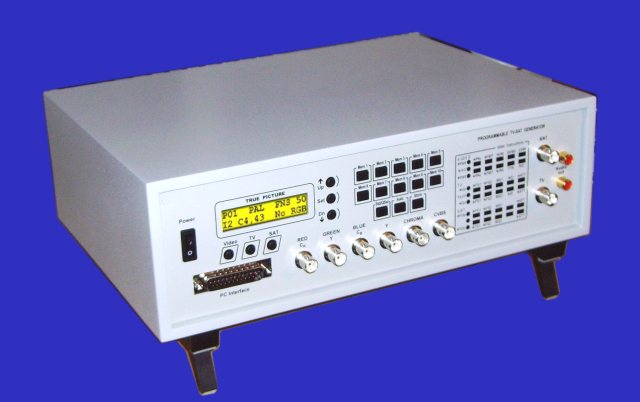

TRF-598

TV-SAT generator with stereo sound and teletext


Desktop television generator TRF-598 is universal and multistandard equipment suitable for TV systems PAL, SECAM, NTSC and all its substandards. Generator supports 4:3, 16:9 and 14:9 picture formats and interlaced & non-interlaced mode. This instrument is capable to generate special television test signals, including so-called „Anti-PAL”.

  • TRF-598 TV&SAT (RF TV and SAT outputs)
  • TRF-598 TV (RF TV output only)
  • PAL, SECAM, NTSC
  • MONO-STEREO-DUO
  • 4:3, 16:9 a 14:9 picture format
  • 69 patterns, 5 custom patterns
  • True Picture technology
  • I/ NI mode
  • Teletext (editable)
  • 50 preselections, auto mode
  • Digital attenuator TV-SAT
  • Outputs VIDEO, S-VIDEO, Y, R-Y, B-Y, RGB, AUDIO, TV, SAT and other
  • Configurable by PC
  • Warranty 2 years, lifetime service
  • Price effective solution

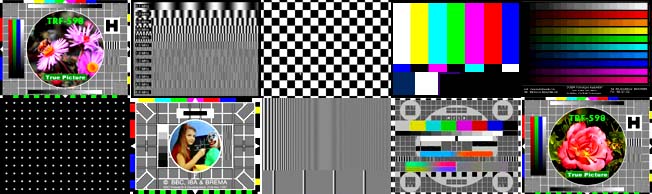

TV-SAT generator TRF-598 contain 69 test patterns, 5 patterns is user definable. Instrument ability illustrate following pictures.

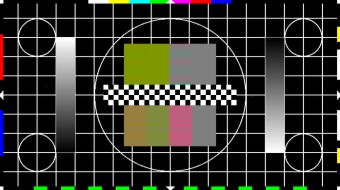

Sample patterns (4:3 and 16:9 picture format). Click on picture for details.
